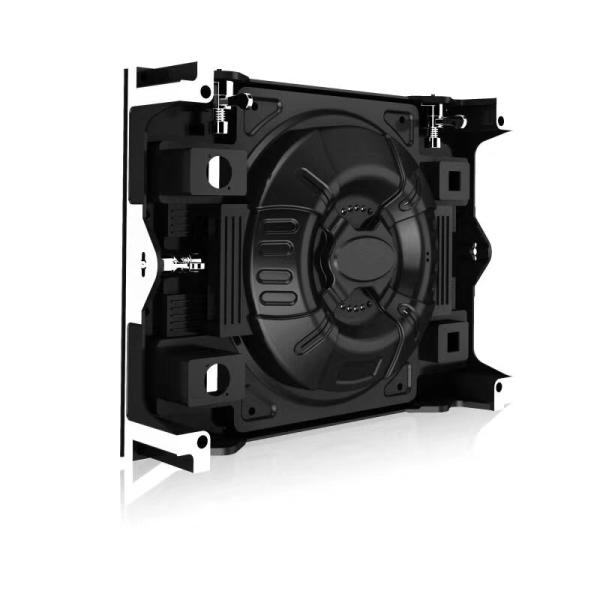

Full Color SMD1010 P1.25 Narrow Pixel Pitch Led Display

Name: Full Color SMD1010 P125 Narrow Pixel Pitch Led Display
Brand: XGCLED
Price: 7150 USD

China Full Color SMD1010 P1.25 Narrow Pixel Pitch Led Display wholesale

Brand Name : XGCLED

Model Number : P1.25

Place of Origin : Shen Zhen ,China

MOQ : 1 square meter

Price : $7150~7390(USD/M2)

Payment Terms : T/T, Western Union

Supply Ability : 200 square meter per day

Delivery Time : 7-20days

Packaging Details : Cartons , wooden case , fright case

Pixel pitch : 1.25mm

Cabinet size : 400*300mm

Module distribution (W*H)) : 2*2

Panel size (W*H*D)) : 400*300*60mm

Panel weight : 3.5kg/pcs

Refresh rate : ≥3840Hz

Viewing Angle (H/V) : 140° /140 °

Installation method : Back Frame /Hoisting /Inner Arc Installation

Driving way : Constant current drive

Working voltage : 100W/㎡~300W/ ㎡

Operating temperature : -10℃～60℃

Operating Humidity : 10%~90%RH No condensation

LED lifetime : 100,000 hrs

Usage : Indoor

Tube chip color : Full Color

Pixels : 1.25mm

Display function : Video

Brightness : 500CD/ square meter

Warranty : 3 Years

Contact Now

Narrow Pixel pitch P1.25 indoor LED display HD video wall screen

Company introduction

We are specialized in LED video display manufacturing and sales , we have exported our products worldwide and win good response from our customer.

Product features

1. Quick installation and maintenance

2. High definition & resolution

3. Ultra slim &light weight

4. Can be front service

5. High Cost -effective

6. Metal power cabinet for better heat dissipation

Module Specifications
1	Pixel Pitch	1.25mm
2	Led Type	SMD1010
3	Module Size	200x100mm
4	Module Resolution	160x80 pixels
5	Driving IC	MBI5153
6	LED lamp	Nationstar
Cabinet Specification
1	Cabinet Size	400x300mm
2	Cabinet Resolution	320x240 pixels
3	Module Qty.	2x3pcs
4	Cabinet Materials	Die-casting Aluminum
5	Cabinet Weight	3Kg
Screen Parameters
1	Screen Size	Costom Size
2	Brightness	500-800cd/m2
3	Scanning Mode	1/20scan
4	Viewing Angle	H:140°;V:140°
5	Viewing Distance	>1m
6	Gray Level	16 Bit
7	Refresh Frequency	≥3840 Hz
8	Power Input	AC 220-240V
9	Power Comsuption	Max: 1200W/㎡ Average: 400W/㎡
10	MTBF--hours	>10,000 hours
11	Life--hours	≥100,000 hours
12	IP Grade	IP40
13	Operating Temperature	-30℃~ 50℃
14	Storage Humidity	10℃~70℃RH
15	Control Syetem	Novastar
16	Operating System	Windows98/2000/NT/XP
17	Power Supply	G-ENERGY
18	Maintance Access	Front service
19	Installation method	Back Frame /Hoisting Installation
20	Display function file formats	AVI, MOV, MPG, DAT, VOB

Standard Accessories:

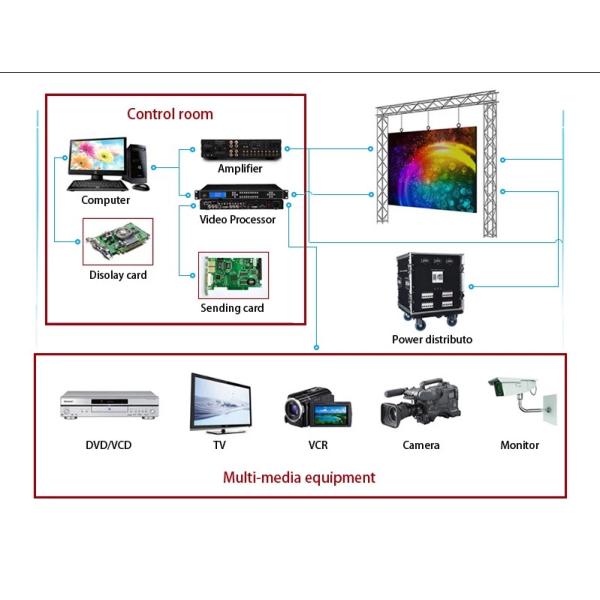

Conection diagram :

Full Color SMD1010 P1.25 Narrow Pixel Pitch Led Display

Regular packing:

Our LED display is packed with flighten case or wooden case for export orders.

Product Tags:

SMD1010 1.25mm fine pitch led display

P1.25 small pixel pitch led display

1.25mm 2x2 LED video wall screen

Full Color SMD1010 P1.25 Narrow Pixel Pitch Led Display Images
